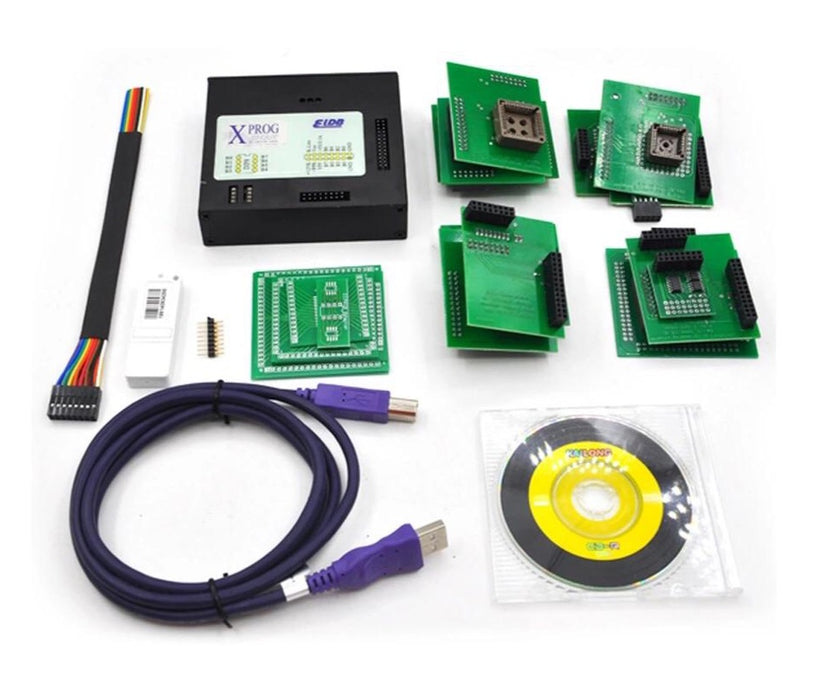

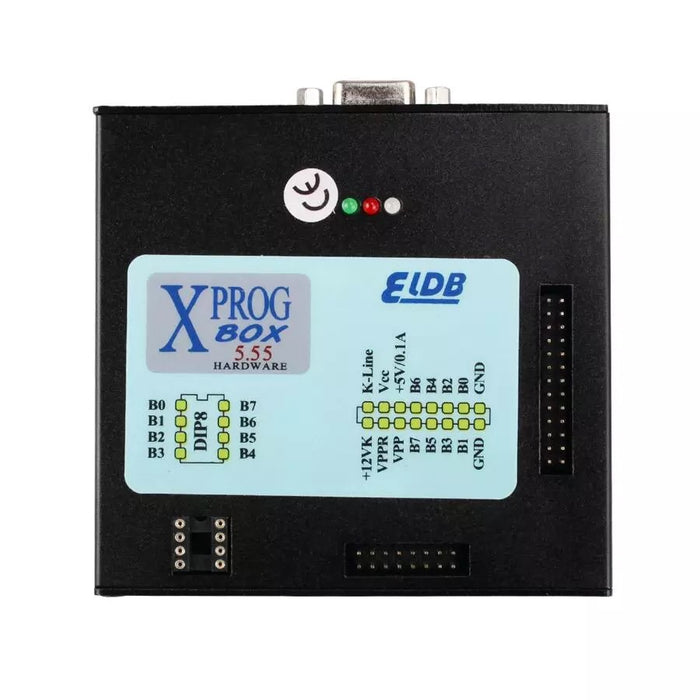

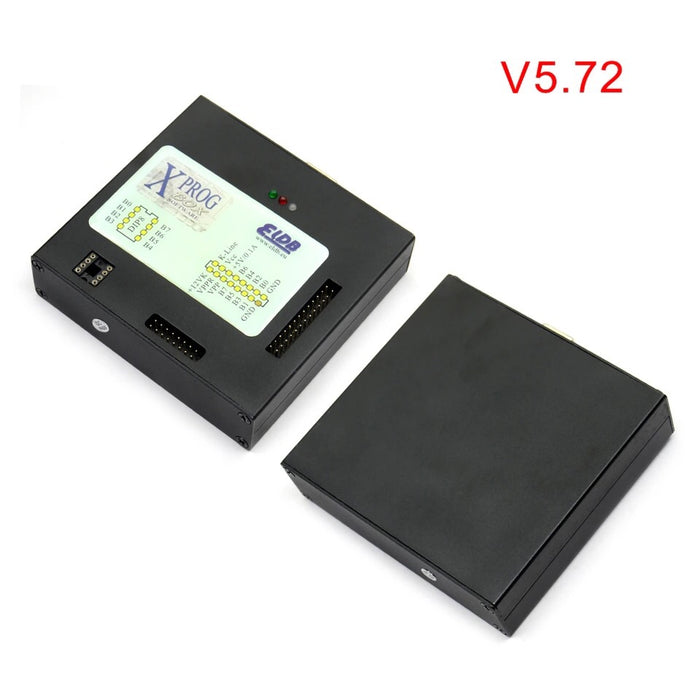

XPROG Auto Programming Tool

R 2,500.00 R 3,000.00

XPROG Auto Programming Tool project is a continuation of the project XPROG and now supports more than 450 units (serial EEPROM`s, Microcontrollers (MCU),   Electronics Control Units (ECU), Dashboards, Immobilizers,...

XPROG Auto Programming Tool project is a continuation of the project XPROG and now supports more than 450 units (serial EEPROM`s, Microcontrollers (MCU),   Electronics Control Units (ECU), Dashboards, Immobilizers, Calculators and others).

Operating system:  Windows 7 32bits or Windows XP

AUTHORIZATIONS:

Product Code Description

AUTH-0001 Motorola HC05 family authorization (allows to read/write EEPROM)

AUTH-0002 Motorola HC08 family authorization (allows to read/write EEPROM)

AUTH-0003 Motorola HC11 family authorization (allows to read/write EEPROM)

AUTH-0004 Motorola HC12, 9S12 family authorization (allows to read/write EEPROM and flash memory)

AUTH-0005 Texas Instruments TMS370/TMS374 family authorization (allows to read/write EEPROM)

AUTH-0006 Motorola HC05Bxx and HC05Xxx family bypass security authorization (allows to read/write secured EEPROM and flash memory)

AUTH-0007 ST M35080 authorization. Read/Write/Erase device to delivery state.

AUTH-0008 B-MW EWS3 authorization

AUTH-0009 ATMEGA family authorization (allows to read/write EEPROM and flash memory)

AUTH-0010 MB ZGS001 authorization

AUTH-0011 Motorola HC11EA9/E9 bypass security authorization (allows to bypass security bit and read EEPROM and RAM memory)

AUTH-0012 National CR16 authorization (allows to read/write EEPROM memory)

AUTH-0014 ST7, ST10 family authorization (allows to read/write internal flash)

AUTH-0015 MPC5xx authorization (depending on device program automatically detects MPC5xx, M95xxx device type, flash, external flash and configuration memory size)

AUTH-0018 Motorola HC12, HC912, MC9S12, MC9S12X bypass security authorization (allows to read/write secured EEPROM and flash memory)

AUTH-0020 ARM (Micronas, ...) Family authorization (allows to read/write internal flash and external serial EEPROM)

AUTH-0021 ARM (Micronas, ...) Family bypass security authorization (allows to read/write secured and non-secured internal flash and external serial EEPROM, view/change mileage,chassis number (VIN), serial number and PIN code).

AUTH-0022

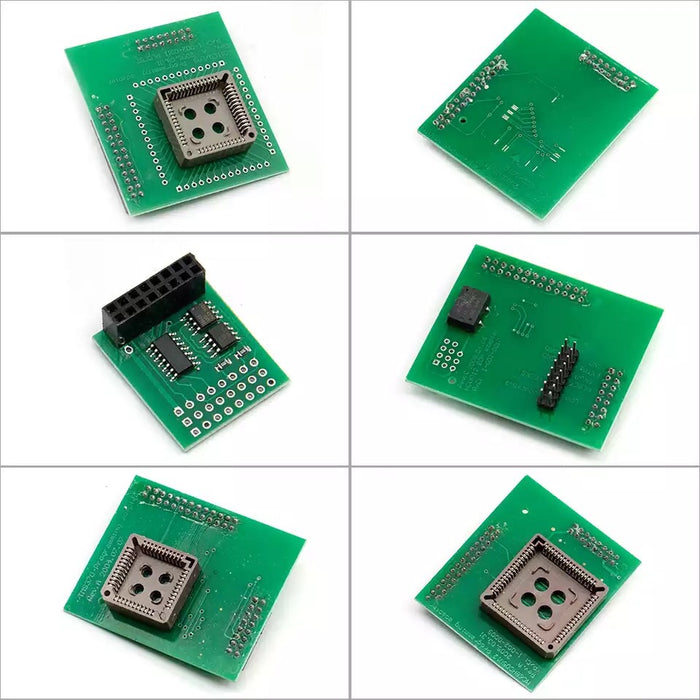

ADAPTERS:

Product Code Description

ADP-0001 TMS370 PLCC28 programming adapter

ADP-0002 TMS370 PLCC44 programming adapter

ADP-0003 TMS370 PLCC68 programming adapter

ADP-0004 Motorola HC05B/X PLCC52 programming adapter

ADP-0005 Motorola HC05B/X QFP64 programming adapter

ADP-0006 ST M35080 in-circuit programming adapter

ADP-0008 TMS374 family in-circuit programming adapter

ADP-0009 MC68HC05V12 programming adapter

ADP-0010 TMS374 on-board programming adapter

ADP-0011 HC11EA9/E9 programming adapter

ADP-0017 HC(S)12 BDM / ARM Micronas in-circuit programming/bypass security adapter

Additional adaptor for 5M48H P-Flash

System requirements:

Processor:  INTEL Pentium 60MHz or faster (depends on operating system)

Memory (RAM):  64MB (depends on operating system)

Hard drive: 20MB free space

Communication:  One free physical COM or USB port

Operating system:  Microsoft Windows XP
