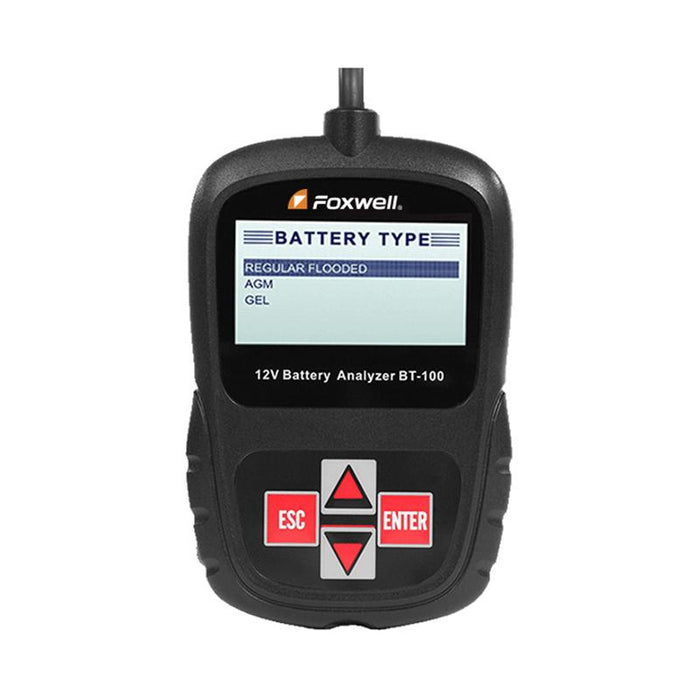

Foxwell BT100 12 Volt Battery Analyzer
The latest BT100 12 Volt Battery Analyzer from Foxwell is dedicatedly developed to test 12V regular flooded, AGM flat plate, AGM spiral and gel batteries. It provides a quick, easy and affordable solution for technicians to view battery charging status, check battery health and detect faults.
Foxwell BT100 PRO 12V Car Battery Tester Main Functions:
1. Multiple vehicle applications ndash passenger cars and light duty trucks
2. Tests batteries rated from 100 to 1100CCA
3. Tests multiple battery types - regular flooded, AGM flat plate, AGM spiral and gel
4. Tests multiple rating systems - CCA，CA， MCA，JIS，SAE，DIN，IEC，EN
5. Tests the batteries on the car directly - no need to remove the battery Detects bad cells
6. Quick and accurate test result display in just 3 seconds
7. Does not emit light, heat or spark, or discharge battery - keeps operation safe for all levels of users Automatic temperature compensation
8. Extremely easy to use with large backlight LCD display and menu-driven operation
9. Multilingual menu and test results.
Specification
|
Item |
Range |
Accuracy |
|
Voltage measuring |
6V to 18V |
0.5% |
|
Battery type |
Flooded, AGM, GEL |
N/A |
|
Battery rating |
100 - 800CCA |
±(3%+10) CCA |
|
Standard support |
CCA, BCI, CA, MCA, JIS, DIN, IEC, EN, SEA |
N/A |
|
Operation Temperature |
0 to 60°C (-4 to 140°F) |
N/A |
|
Storage Temperature |
0 to 70°C (-4 to 158°F) |
N/A |
Dimensions: 145*94*32MM
Weight: 320g
Dimensions of Packaging: 263*175*45mm
PCS/CTN: 60PCS
Net Weight/CTN: 18.00KGS
Gross Weight/CTN: 32.5KGS
CTN MEAS: 590*480*566MM Gross Weight/CTN: 17KGS

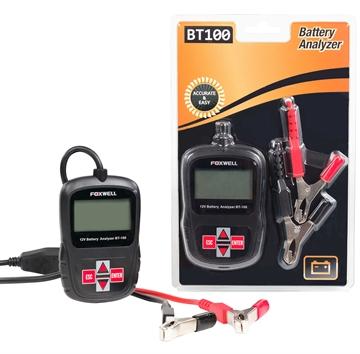

Package List
BT100 12 Volt Battery Analyzer
BT100 User’s Guide
USB cable
